Slide In Units

• Overall Dimensions: 57″wide, 38″ tall, 71″ long
• Storage Compartment: 13″wide, 22″tall, 57″long
• First Compartment Each Side: 20″wide, 22″tall, 28 1/2”deep
• Rear Animal Compartment: 28 1/2″ wide, 41″tall, 36″deep

Construction:

• Framing is 1″ square tubing frame with solid wall partitions
• The entire frame is hot dipped galvanized. The outside skin is 040 white, baked on enamel, aluminum
• Compartment doors are 1/8 solid aluminum with 12 X 12 grills for ventilation on the side doors, and 18 X 24 grills on the rear doors
• Doors are painted white with automotive polyurethane paint
• Door handles are locking tee handles keyed alike
• Door hinges are continuous stainless steel hinge
• 12 Volt Exhaust Fan, 800 CFM–The fan is installed in the roof of the unit to exhaust heat from each compartment

***Optional Equipment***

• Backup Alarm-PM #781
• Secondary Safety Doors–These doors are located inside the primary door and are constructed of 125 aluminum with ¾” holes punched for ventilation and a catch pole cutout.
• Top Luggage Rack-This rack is installed on top of unit for additional storage. The rack is constructed of 1 ½ X 1 ½ square aluminum tubing welded.
• Interior Lights-An interior light can be installed in each compartment with all switches mounted on the dash of the vehicle.
• Emergency Strobe-Federal Signal Model 450112- measures 16” long and 5″ high and 7” wide with (2) 55 watt halogen bulbs, reflectors and amber colored dome, wired with #12 thermoplastic wire with fused circuit breaker, and dash mounted switches.
• Rubber Mats-Constructed of  ½” thick, chew proof rubber mats to fit the floor of the compartment.
• Rear Flood Lights (2) 4 X 6 Quartz floodlights mounted on the rear of the unit.
• Dead Animal Pan-This is available to fit the rear compartments only. It is constructed of aluminum and has four raised sides and handles on each end can be fitted in the rear compartments for loading dead animals.
• Pet Step-Constructed of polypropylene, with a size of 70” L (35” L when folded) X 18” W with universal rubberized grips to fit any vehicle.
• Directional Light Bar-Federal Signal Model 321112-Traffic advisor located on the rear of the unit, placed at center top to advise traffic of the vehicles location.
• Digital Thermometer-Mounted on dash of truck with the probe located inside animal unit to monitor temperature while vehicle is in use.

• Must specify exact bed
• Fits Chevy Colorado, Ford Ranger, or Dodge Dakota Models
• Overall Dimensions: 57″wide, 38″ tall, 71″ long
• Storage Compartment: 13″wide, 22″tall, 57″long
• First Compartment Each Side:  20″wide, 22″tall, 28 1/2”deep
• Rear Animal Compartment: 28 1/2″ wide, 41″tall, 36″deep

Construction:

• Framing is 1″ square tubing frame with solid wall partitions
• The entire frame is hot dipped galvanized. The outside skin is 040 white, baked on enamel, aluminum
• Compartment doors are 1/8 solid aluminum with 12 X 12 grills for ventilation on the side doors, and 18 X 24 grills on the rear doors
• Doors are painted white with automotive polyurethane paint
• Door handles are locking tee handles keyed alike
• Door hinges are continuous stainless steel hinge
• 12 Volt Exhaust Fan, 800 CFM–The fan is installed in the roof of the unit to exhaust heat from each compartment

***Optional Equipment***

• Backup Alarm-PM #781
• Secondary Safety Doors–These doors are located inside the primary door and are constructed of 125 aluminum with ¾” holes punched for ventilation and a catch pole cutout.
• Top Luggage Rack-This rack is installed on top of unit for additional storage. The rack is constructed of 1 ½ X 1 ½ square aluminum tubing welded.
• Interior Lights-An interior light can be installed in each compartment with all switches mounted on the dash of the vehicle.
• Emergency Strobe-Federal Signal Model 450112- measures 16” long and 5″ high and 7” wide with (2) 55 watt halogen bulbs, reflectors and amber colored dome, wired with #12 thermoplastic wire with fused circuit breaker, and dash mounted switches.
• Rubber Mats-Constructed of  ½” thick, chew proof rubber mats to fit the floor of the compartment.
• Rear Flood Lights (2) 4 X 6 Quartz floodlights mounted on the rear of the unit.
• Dead Animal Pan-This is available to fit the rear compartments only. It is constructed of aluminum and has four raised sides and handles on each end can be fitted in the rear compartments for loading dead animals.
• Pet Step-Constructed of polypropylene, with a size of 70” L (35” L when folded) X 18” W with universal rubberized grips to fit any vehicle.
• Directional Light Bar-Federal Signal Model 321112-Traffic advisor located on the rear of the unit, placed at center top to advise traffic of the vehicles location.
• Digital Thermometer-Mounted on dash of truck with the probe located inside animal unit to monitor temperature while vehicle is in use.

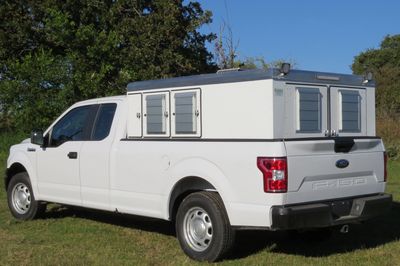

• Fits full size short bed trucks - Chevrolet, Dodge, Ford, Full Size SWB
• Overall Dimensions: 68″wide, 42″ tall, 76″ long
• Storage Compartment: 11″wide, 24″tall, 68″deep
• First Compartment Each Side: 20″wide, 24″tall, 34”deep
• Rear Animal Compartment: 28″ wide, 42″tall, 36″deep

Construction:

• Framing is 1″ square tubing frame with expanded steel partition, welded
• The entire unit is hot dipped galvanized
• The outside skin is 040 white, baked on enamel, aluminum
• Compartment doors are 1/8 solid aluminum with 14×17 grills for ventilation on the side doors, and 14×17 grills on the rear doors
• Doors are painted white with automotive polyurethane paint
• Door handles are locking tee handles keyed alike
• Door hinges are continuous stainless steel hinge
• 12 Volt Exhaust Fan, 800 CFM-The fan is installed in the roof of the unit to exhaust heat from each compartment

***Optional Equipment***

•
• Backup Alarm-PM #781
• Secondary Safety Doors–These doors are located inside the primary door and are constructed of 125 aluminum with ¾” holes punched for ventilation and a catch pole cutout.
• Top Luggage Rack-This rack is installed on top of unit for additional storage. The rack is constructed of 1 ½ X 1 ½ square aluminum tubing welded.
• Interior Lights-An interior light can be installed in each compartment with all switches mounted on the dash of the vehicle.
• Emergency Strobe-Federal Signal Model 450112- measures 16” long and 5″ high and 7” wide with (2) 55 watt halogen bulbs, reflectors and amber colored dome, wired with #12 thermoplastic wire with fused circuit breaker, and dash mounted switches.
• Swinging Partition-Swinging partitions can be installed in compartments and opened to create a pass through compartment between each side of the unit.
• Rubber Mats-Constructed of  ½” thick, chew proof rubber mats to fit the floor of the compartment.
• Rear Flood Lights (2) 4 X 6 Quartz floodlights mounted on the rear of the unit.
• Dead Animal Pan-This is available to fit the rear compartments only. It is constructed of aluminum and has four raised sides and handles on each end can be fitted in the rear compartments for loading dead animals.
• Pet Step-Constructed of polypropylene, with a size of 70” L (35” L when folded) X 18” W with universal rubberized grips to fit any vehicle.
• Directional Light Bar-Federal Signal Model 321112-Traffic advisor located on the rear of the unit, placed at center top to advise traffic of the vehicles location.
• Door Checks-Mounted inside the cage attached to the primary door, used to hold the door in open position while loading/unloading animals.
• Digital Thermometer–Mounted on dash of truck with the probe located inside animal unit to monitor temperature while vehicle is in use.

• Must specify exact bed
• Will fit full size pick up trucks -Chevrolet, Ford, Dodge; 8' bed only
• Overall Deminsions: 68”wide, 42”tall, 96”long
• Storage Compartment: 13″wide, 22″tall, 68″long
• First Compartment Each Side: 20″wide, 22″tall, 34”deep
• Rear Animal Compartment: 30″wide, 41″tall, 40″deep

Construction:

• Framing is 1″ square tubing frame with expanded steel partition, welded
• The entire unit is hot dipped galvanized
• The outside skin is 040 white, baked on enamel, aluminum
• There is 1” foam insulation in the side panels of the unit
• Compartment doors are 1/8 solid aluminum with 14×17 grills for ventilation on the side doors, and 14×17 grills on the rear doors
• Doors are powder coated white
• Door handles are locking tee handles keyed alike
• Door hinges are continuous stainless steel hinge
• 12 Volt Exhaust Fan, 800 CFM–The fan is installed in the roof of the unit to exhaust heat from each compartment

***Optional Equipment***

• Backup Alarm-PM #781
• Secondary Safety Doors–These doors are located inside the primary door and are constructed of 125 aluminum with ¾” holes punched for ventilation and a catch pole cutout.
• Top Luggage Rack-This rack is installed on top of unit for additional storage. The rack is constructed of 1 ½ X 1 ½ square aluminum tubing welded.
• Interior Lights-An interior light can be installed in each compartment with all switches mounted on the dash of the vehicle.
• Emergency Strobe-Federal Signal Model 450112- measures 16” long and 5″ high and 7” wide with (2) 55 watt halogen bulbs, reflectors and amber colored dome, wired with #12 thermoplastic wire with fused circuit breaker, and dash mounted switches.
• Swinging Partition-Swinging partitions can be installed in compartments and opened to create a pass through compartment between each side of the unit.
• Rubber Mats-Constructed of  ½” thick, chew proof rubber mats to fit the floor of the compartment.
• Rear Flood Lights (2) 4 X 6 Quartz floodlights mounted on the rear of the unit.
• Dead Animal Pan-This is available to fit the rear compartments only. It is constructed of aluminum and has four raised sides and handles on each end can be fitted in the rear compartments for loading dead animals.
• Pet Step-Constructed of polypropylene, with a size of 70” L (35” L when folded) X 18” W with universal rubberized grips to fit any vehicle.
• Directional Light Bar-Federal Signal Model 321112-Traffic advisor located on the rear of the unit, placed at center top to advise traffic of the vehicles location.
• Door Checks-Mounted inside the cage attached to the primary door, used to hold the door in open position while loading/unloading animals.
• Digital Thermometer-Mounted on dash of truck with the probe located inside animal unit to monitor temperature while vehicle is in use.
